VW3A5302 | Schneider Electric

Output filter, 15 A for Frequency converter, VW3A5302

Order No.: 06N0118
EAN: 3606480736698
MPN:
VW3A5302
Schneider Electric
VW3A5302 Schneider Electric Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
404.7666 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
404.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
404.7666 €

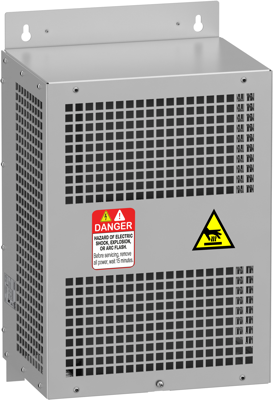

Dv/dt filter, VW3A5302, Schneider Electric

This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 15A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 12kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Technical specifications
Version Du/dt output filter
Output current 15 A
Width 295 mm
Suitable for Frequency converter
Height 535 mm
Depth 215 mm
Logistics
Country of origin CN
Customs tariff number 85480090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
