VW3A7732 | Schneider Electric

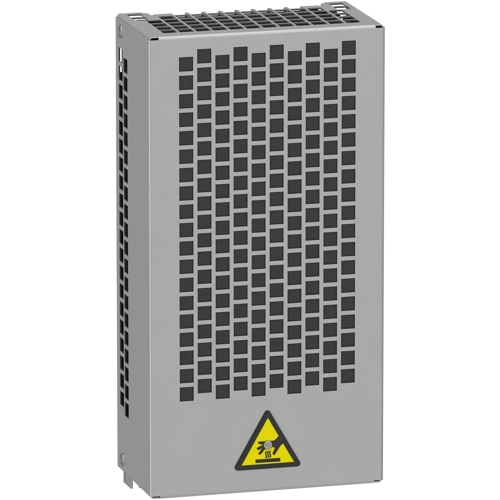

Braking resistor, 0.3 kW, for Altivar series, VW3A7732

Order No.: 06N0089
EAN: 3606480802263
MPN:
VW3A7732
Schneider Electric
VW3A7732 Schneider Electric Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
158.5675 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
158.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
158.5675 €

Braking resistor, VW3A7732, Schneider Electric

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 3kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Technical specifications
Version braking resistor
Width 175 mm
Suitable for Altivar series
Height 345 mm
Power 0.3 kW
Depth 100 mm
Logistics
Country of origin DE
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
