VW3A7741 | Schneider Electric
Braking resistor, 0.5 kW, for Altivar series, VW3A7741
Unit Price (€ / pc.)
430.185 € *
Available: 0 pcs.
Leadtime: 1 Week **

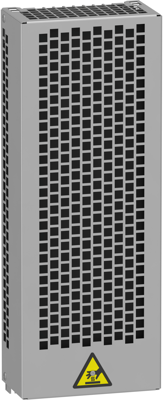

Braking resistor, VW3A7741, Schneider Electric
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 60Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 4.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Technical specifications
| Ausführung | Bremswiderstand | |
| Breite | 175 mm | |
| Geeignet für | Altivar Serie | |
| Höhe | 465 mm | |
| Leistung | 0.5 kW | |
| Tiefe | 100 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
