VW3A95811 | Schneider Electric
Mounting kit, for ATV320, VW3A95811
Unit Price (€ / pc.)
120.9397 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
120.94 € *
Price list
Quantity
Price per unit*
1 pcs.
120.9397 €
3 pcs.
117.5958 €
5 pcs.
114.4304 €
*incl. VAT plus shipping costs
**Subject to prior sale

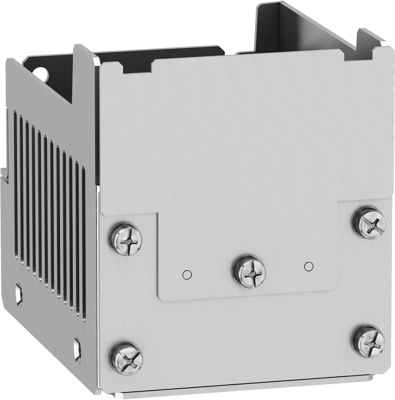

Conformity kit, VW3A95811, Schneider Electric
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This conformity kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 1C (72mm/2.83in wide x 81.4mm/3.2in high, and 98.8mm/3.89in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320-C drives, rated at 0.18kW, 0.37kW, 0.55kW, or 0.75kW, to feed single phase motors from 200V to 240V.
Technical specifications
| Version | kit | |
| Suitable for | ATV320 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
