VW3A95816 | Schneider Electric
Mounting kit, for ATV320, VW3A95816
Unit Price (€ / pc.)
139.2181 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

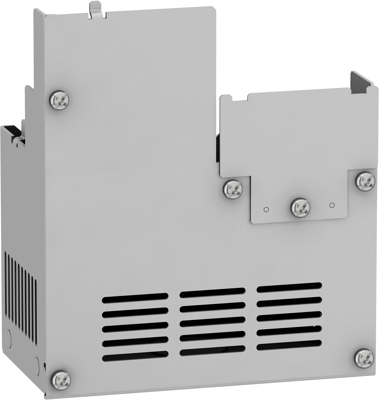

Conformity kit, VW3A95816, Schneider Electric
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 4C (150mm/6.1in wide x 174.5mm/6.87in high, and 82mm/3.23in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320U55M3C, ATV320U75M3C, ATV320U55N4C, and ATV320U55N4C drives.
Technical specifications
| Version | kit | |
| Suitable for | ATV320 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
