DZ5CA042 | Schneider Electric

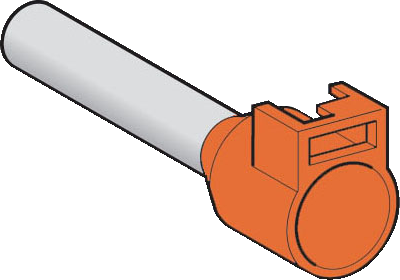

Insulated wire end ferrule, 4.0 mm², 20 mm long, NF C 63-023, orange, DZ5CA042
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Leadtime: On Request **
Cable end, DZ5CA042, Schneider Electric
Linergy cable end insulated for clip-in marker. It applied to single conductor with 4 mm² cable cross section. It has red surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Technical specifications
| Colour | orange | |
| Isolated | Yes | |
| Length | 20 mm | |
| Cable cross-section | 4.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | NF C 63-023 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
