DZ5CE002 | Schneider Electric

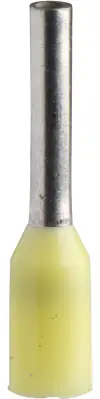

Insulated wire end ferrule, 0.25 mm², 12 mm long, NF C 63-023, yellow, DZ5CE002
Order No.: 02P5549
EAN: 4099889616026
MPN:
DZ5CE002
Unit Price (€ / pc.)
0.0536 € *
Available: 0 pcs.
Leadtime: On Request **
Cable end, DZ5CE002, Schneider Electric
Linergy cable end insulated without marker tag holder. It applied to single conductor with 0.25 mm² cable cross section. It has yellow surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).
Technical specifications
| Colour | yellow | |
| Isolated | Yes | |
| Length | 12 mm | |
| Cable cross-section | 0.25 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | NF C 63-023 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
