1393219-5 | Schrack
Relay, 1 Form C (NO/NC), 9 V (DC), 405 Ω, 5 A, 400 V (AC), monostable, 1393219-5
Order No.: 71P1987
MPN:
1393219-5
Unit Price (€ / pc.)
2.6775 € *
Available: 0 pcs.
Available in 5 Days: 35,887 pcs.
Leadtime: 13 Weeks **
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
50 pcs.
2.6775 €
200 pcs.
2.6418 €
*incl. VAT plus shipping costs
**Subject to prior sale

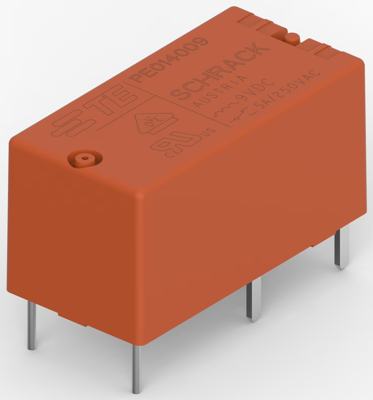

Miniature relay, 1393219-5, Schrack
Power relay, Standard, Monostable, DC, 200 mW Coil Power Rating DC, 405 Ω Coil Resistance, 9 VDC Coil Voltage, 1 Form C (CO).
Features
- Low height
Applications
- Industrial electronics
- White goods
- Measurement and control
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi 90/10 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 5 A | |
| Coil voltage (DC) | 9 V | |
| Coil type | monostable | |
| Coil resistance | 405 Ω |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
