1393240-7 | Schrack
Relay, 1 Form C (NO/NC), 230 V (AC), 1.44 kΩ, 16 A, 400 V (AC), monostable, 1393240-7
Power relay, type TE Connectivity/Schrack RT1.
For DC or AC voltage, automatic soldering-proof; Grid: 3.5 or 5.0 mm. Air gap/creepage distance: min. 10 mm between contacts and coil. Contact material: AgNi 90/10. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 12 or 16 A. Breaking capacity: max. 3000 VA (at 12 A), 4000 VA (at 16 A). Dielectric strength coil/contact: 5000 VRMS. Rated coil power: 400 mW (DC coil), 0.74 VA/50 Hz (AC coil). Response/release time: max. 8.0/6.0 ms. Relay protection class RT II. Overvoltage category: III. Ambient temperatures: –40 to +85 °C (DC coil), –40 to +70 °C (AC coil). Certifications: VDE, UL, CSA etc.
With 1 x CO, rated current 16 A.

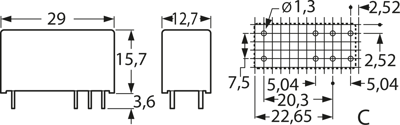

Technical attributes (type, rated coil voltage, coil resistance (±10 %, at 230 VAC ±15%), grid (RM), figure): 0-1393240-7, 230 VAC, 32500 ohm, 5.0 mm, C
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 1 Wechsler | |
| Kontaktmaterial | AgNi 90/10 | |
| Schaltspannung (AC) | 400 V | |
| Schaltstrom | 16 A | |
| Spulenspannung (AC) | 230 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 1.44 kΩ |
| Ursprungsland | TW |
| Zolltarifnummer | 85364900 |
| Originalverpackung | Stange mit 20 Stück |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
