2-2158100-3 | Schrack
Relay, 1 Form C (NO/NC), 24 V (DC), 1086 Ω, 16 A, 300 V (DC), monostable, 2-2158100-3
Unit Price (€ / pc.)
1.7255 € *
Available: 0 pcs.
Available in 5 Days: 75,405 pcs.
Leadtime: 52 Weeks **
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
60 pcs.
1.7255 €
260 pcs.
1.6898 €
*incl. VAT plus shipping costs
**Subject to prior sale

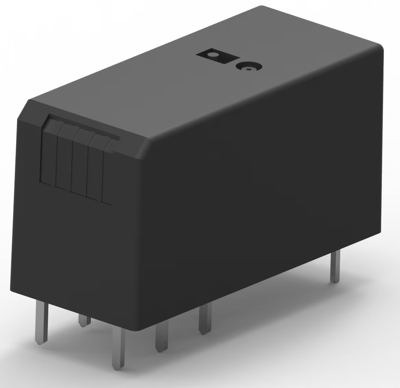

Power relay, 2-2158100-3, Schrack
Power relay, Standard, Monostable, DC, 530 mW Coil Power Rating DC, 1086 Ω Coil Resistance, UL Coil Insulation Class F.
Applications
- Household appliances
- Boiler control
- Garage door control
- Timers
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi 90/10 | |
| Switching Voltage (DC) | 300 V | |
| switching current | 16 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 1086 Ω |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
