3-1393223-7 | Schrack

Name: Relay, 1 Form C (NO/NC), 48 V (DC), 8.79 kΩ, 8 A, 400 V (AC), monostable, 3-1393223-7
Brand: Schrack
SKU: 25G2645
Price: 3.40 EUR
Availability: OutOfStock

Relay, 1 Form C (NO/NC), 48 V (DC), 8.79 kΩ, 8 A, 400 V (AC), monostable, 3-1393223-7

Order No.: 25G2645

EAN: 4099889392302

MPN:

3-1393223-7

V23061-B1009-A301

Image may differ

Key Specification:

Contact type 1 Form C (NO/NC)

switching current 8 A

Coil voltage (DC) 48 V

Coil resistance 8.79 kΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.4034 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

3.40 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

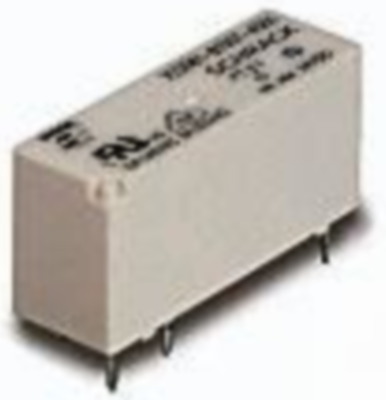

Miniature power PCB relay, 3-1393223-7, SCHRACK

Features

High inrush currents with AgSnO2 contacts
4 kV/8 mm coil-contact
Reinforced insulation (protection class II)
Ambient temperature up to 85°C at 8A

Applications

HVAC
PLC’s
Interface technology
Power supplies

Technical specifications

	Connection	PCB connection
	Contact type	1 Form C (NO/NC)
	Contact material	AgSnO2
	Switching Voltage (AC)	400 V
	switching current	8 A
	Coil voltage (DC)	48 V
	Coil type	monostable
	Coil resistance	8.79 kΩ
