4-1419111-2 | Schrack

Relay, 2 Form C (NO/NC), 24 V (DC), 777 Ω, 12 A, 400 V (AC), monostable, 4-1419111-2

Order No.: 30G8392
EAN: 4099889396324
MPN:
4-1419111-2
PT270024
Series: PT

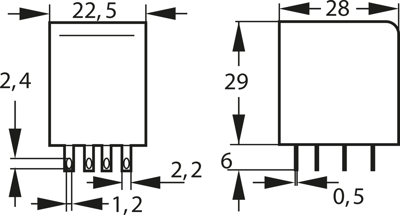

4-1419111-2 Schrack Industrial Relays Image 1
4-1419111-2 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
11.1265 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
11.13 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1265 €
10 pcs.
10.2459 €
50 pcs.
9.2225 €
100 pcs.
8.2943 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature relay, type TE Connectivity/Schrack PT.

General-purpose Relay for 2.8 mm PCB or plug-in terminals. DC or AC voltage. Touch-protected test button and selectable interlock. Mechanical power indicator with white labeling field; Contact type: 2, 3 or 4 CO (single contact). Contact material: AgNi 90/10. Rated voltage: 240 VAC. Rated current: 6.0, 10 or 12 A. Breaking capacity: 1500, 2500 or 3000 VA. Coil/contact dielectric strength: 2500 VRMS. Response/release time: 15/10 ms. Bounce time: 5.0 ms, Connections: 2.8 mm plug-in connections or PCB terminals. Degree of protection: RT II. Degree of soiling: 2. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.

With 2 x CO contacts, type PT270/PT271.

Rated current: 12 A. Breaking capacity: max. 3000 VA. Make capacity: 24 A (max. 20 ms).

Technical attributes (type, rated voltage, coil resistance (±10 %, at 230 VAC = ±15%), connection type): 4-1419111-2, 24 VDC, 777 ohm, tab terminals

Technical specifications
Anschluss Leiterplattenanschluss
Kontaktart 2 Wechsler
Kontaktmaterial AgNi 90/10
Schaltspannung (AC) 400 V
Schaltstrom 12 A
Spulenspannung (DC) 24 V
Spulentyp monostabil
Spulenwiderstand 777 Ω
Logistics
Ursprungsland IN
Zolltarifnummer 85364900
Originalverpackung Stange mit 10 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
