5-1393243-4 | Schrack
Relay, 2 Form C (NO/NC), 12 V (DC), 240 Ω, 8 A, 400 V (AC), bistable, 5-1393243-4
Unit Price (€ / pc.)
7.2828 € *
Available: 8 pcs.
Available in 5 Days: 2,499 pcs.
Leadtime: 13 Weeks **
Total Price:
7.28 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2828 €
10 pcs.
6.6997 €
50 pcs.
6.0928 €
100 pcs.
5.4859 €
*incl. VAT plus shipping costs
**Subject to prior sale

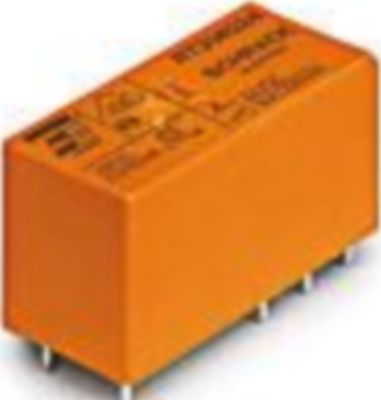

Power relay, type TE Connectivity/Schrack RT2.
Polarized, with reinforced insulation. Bistable, 2 coils; Contact type: 2 x CO. Grid: 5.0 mm. Contact material: AgNi 90/10. Rated voltage: 240 VAC. Rated current: 8.0 A (UL 10 A). Switching voltage: max. 400 VAC. Breaking capacity: max. 2000 VA. ON capacity: 15 A. Contact/coil dielectric strength: 5000 VRMS. Coil power: 600 mW. Response/release time: 5.0/3.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL, CSA.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): 5-1393243-4, 12 VDC, 240 ohm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | AgNi 90/10 | |
| Rastermaß | 5 mm | |
| Schaltspannung (AC) | 400 V | |
| Schaltstrom | 8 A | |
| Spulenspannung (DC) | 12 V | |
| Spulentyp | bistabil | |
| Spulenwiderstand | 240 Ω |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85364900 |
| Originalverpackung | Stange mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
