5-1416200-8 | Schrack
Relay, 1 Form A (N/O), 24 V (DC), 2270 Ω, 8 A, 400 V (AC), monostable, 5-1416200-8
Order No.: 71P9371
EAN: 4099891595395
MPN:
5-1416200-8
Unit Price (€ / pc.)
2.4871 € *
Available: 0 pcs.
Available in 5 Days: 14,779 pcs.
Leadtime: 21 Weeks **
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
40 pcs.
2.4871 €
200 pcs.
2.4276 €
*incl. VAT plus shipping costs
**Subject to prior sale

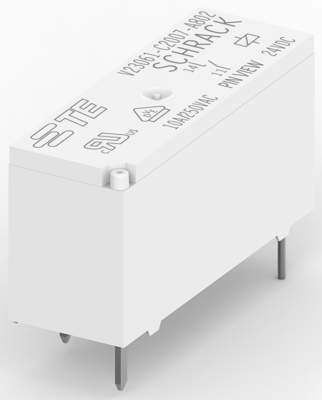

Miniature power relay, 5-1416200-8, Schrack
Power relay, Standard, Monostable, DC, 254 mW Coil power rating DC, 2270 Ω Coil resistance, UL Coil Insulation Class F, 24 VDC Coil voltage.
Applications
- Interface technology
- Power supplies
- TV-/monitor control
- Domestic appliances
- Hi-Fi products
- Timers
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgNi 90/10 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 8 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 2270 Ω |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
