6-1393091-8 | Schrack
Relay, 3 Form C (NO/NC), 12 V (DC), 110 Ω, 10 A, 400 V (AC), monostable, 6-1393091-8
Unit Price (€ / pc.)
26.8702 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
26.87 € *
Price list
Quantity
Price per unit*
1 pcs.
26.8702 €
10 pcs.
24.7163 €
25 pcs.
22.7409 €
50 pcs.
20.6941 €
*incl. VAT plus shipping costs
**Subject to prior sale

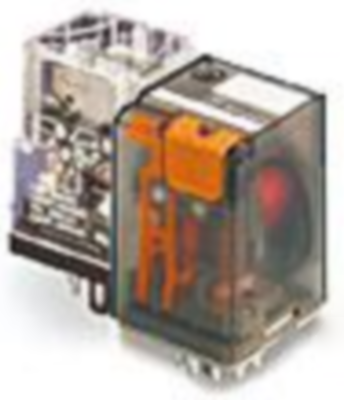

Relay, type TE Connectivity/Schrack Multimode MT.
For DC and AC voltage, mechanical or optional electrical status display (LED), test lever, white labeling field and new test key system (touch-proof, interlock using the lever integrated in the cap and operation of the test key from the front); Rated voltage: 240 VAC. Switching voltage: max. 400 VAC. Rated current: 10 A. Inrush current (max. 20 ms): 20 A. Breaking capacity: max. 2500 VA. Certifications: VDE, UL, CSA.
With 3 x CO, contact material AgNi 90/10.
Technical attributes (type, rated coil voltage, coil resistance ±10 % (230 VAC ±12%)): 6-1393091-8, 12 VDC, 110 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 3 Form C (NO/NC) | |
| Contact material | AgNi 90/10 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 10 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 110 Ω |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
