6-1393215-7 | Schrack
Relay, 1 Form C (NO/NC), 12 V (DC), 330 Ω, 5 A, 400 V (AC), monostable, 6-1393215-7
Unit Price (€ / pc.)
17.5406 € *
Available: 27 pcs.
Next delivery: 7 pcs. on 2025-04-04
Leadtime: On Request **
Total Price:
17.54 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5406 €
20 pcs.
15.4343 €
40 pcs.
14.8988 €
160 pcs.
14.0658 €
*incl. VAT plus shipping costs
**Subject to prior sale

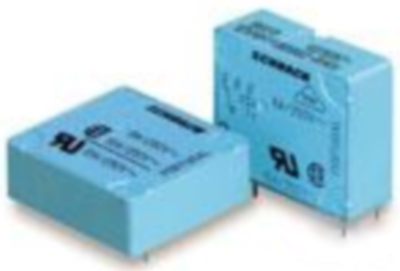

Power relay, type TE Connectivity/Schrack E.
Vertical, wash-proof, monostable; Air gaps and creepage distances coil/contact: > 4.0 mm. Rated voltage: 240 VAC. Switching voltage: max. 400 VAC. Load switching capacity (4.0 s): 15 A. Dielectric strength coil/contact: 4000 VRMS. Response/release time: typically 7.0/3.0 ms. Relay protection class RT III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.
With single contacts AgNi 0.15 and 1 x CO.
Rated current: 5.0 A. Breaking capacity: max. 1250 VA.
Technical attributes (type, rated coil voltage, coil resistance (±10 %, as of 1200 ohm ±15%), rated coil power): 6-1393215-7, 12 VDC, 330 ohm, 436 mW
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi 0.15 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 5 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 330 Ω |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85364900 |
| Original Packaging | Bar with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
