6-1415029-1 | Schrack
Relay, 1 Form C (NO/NC), 5 V (DC), 70 Ω, 10 A, 400 V (AC), monostable, 6-1415029-1
Unit Price (€ / pc.)
1.6898 € *
Available: 0 pcs.
Available in 5 Days: 1,050 pcs.
Leadtime: 19 Weeks **
Total Price:
1,774.29 € *
Price list
Quantity
Price per unit*
1050 pcs.
1.6898 €
3150 pcs.
1.4042 €
*incl. VAT plus shipping costs
**Subject to prior sale

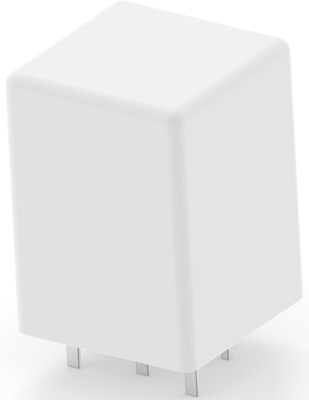

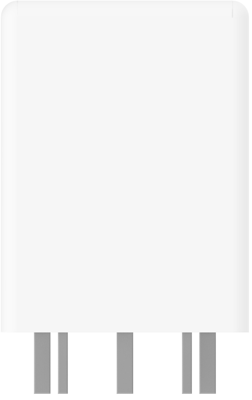

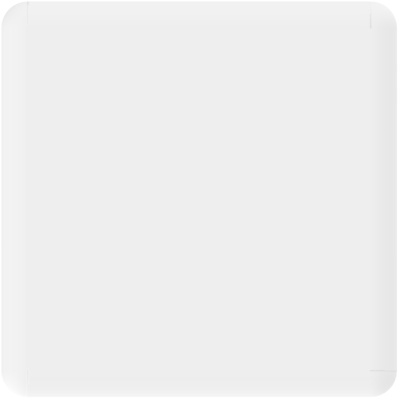

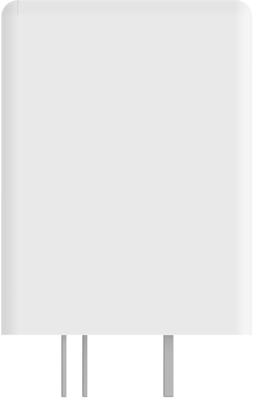

Power relay, 6-1415029-1, Schrack
Power relay, Standard, Monostable, DC, 357 mW Coil Power Rating DC, 70 Ω Coil Resistance.
Features
- Environmentally-friendly
- Compact and simple design gives high process security
Applications
- White goods
- Small home appliances
- Heating temperature controllers
Technical specifications
| Anschluss | Leiterplattenstift | |
| Kontaktart | 1 Wechsler | |
| Kontaktmaterial | AgNi 90/10 | |
| Schaltspannung (AC) | 400 V | |
| Schaltstrom | 10 A | |
| Spulenspannung (DC) | 5 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 70 Ω |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
