8-1415006-1 | Schrack
Relay, 1 Form C (NO/NC), 12 V (DC), 360 Ω, 16 A, 400 V (AC), monostable, 8-1415006-1
Unit Price (€ / pc.)
3.8794 € *
Available: 0 pcs.
Available in 5 Days: 148 pcs.
Leadtime: 15 Weeks **
Total Price:
3.88 € *
Price list
Quantity
Price per unit*
40 pcs.
3.8794 €
160 pcs.
3.2487 €
*incl. VAT plus shipping costs
**Subject to prior sale

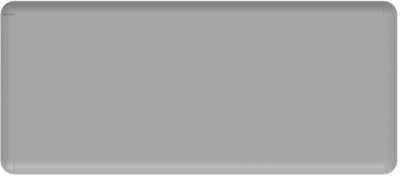

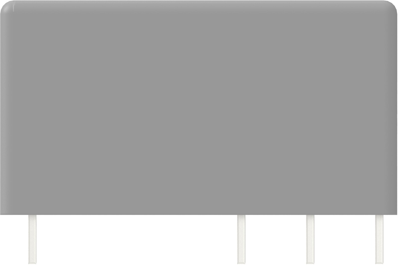

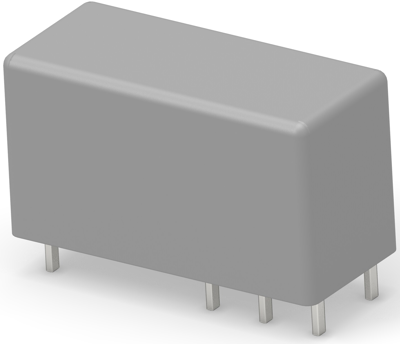

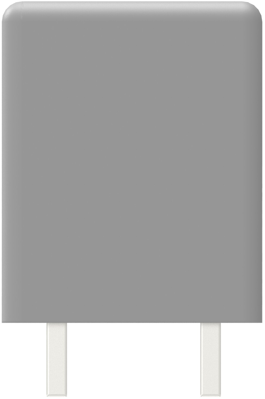

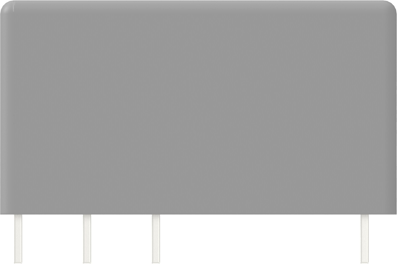

Power relay, 8-1415006-1, Schrack
Power relay, Standard, Monostable, DC, 400 mW Coil Power Rating DC, 360 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface modules
- Timers
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi 90/10 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 16 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 360 Ω |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
