9-1393230-5 | Schrack

Relay, 1 Form C (NO/NC), 24 V (DC), 1.1 kΩ, 8 A, 400 V (AC), monostable, 9-1393230-5

Order No.: 30G6714
EAN: 4099889395167
MPN:
9-1393230-5
RP411024
Series: RPII/1
Schrack

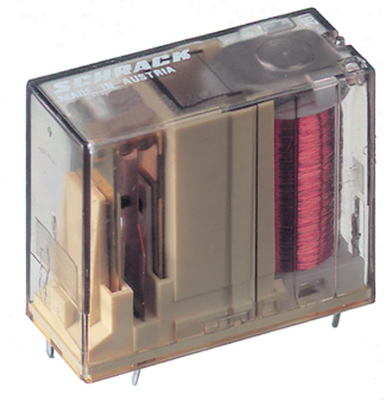

9-1393230-5 Schrack Industrial Relays Image 1
9-1393230-5 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
7.6755 € *
Available: 0 pcs.
Available in 5 Days: 3,107 pcs.
Leadtime: 14 Weeks **
Total Price:
7.68 € *
Price list
Quantity
Price per unit*
15 pcs.
7.6755 €
60 pcs.
7.5446 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power relay, type TE Connectivity/Schrack RP II/1.

Suitable for automatic soldering lines, or wash-proof; Grid: 3.5 mm or 5.0 mm. Contact type: 1 x CO, or 1 NO (single contact). Contact material: AgNi 0.15 or AgCdO. Rated voltage: 250 VAC. Rated current: 8.0, 12 or 16 A. Breaking capacity: max. 2000, 3000 or 4000 VA. Coil/contact dielectric strength: 4000 VRMS. Coil power: 500 mW. Response/release time: 8.0/2.0 ms. Degree of protection: RT II or RT III. Degree of soiling: 3. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.

Suitable for automatic soldering lines, 1 x CO, rated current 8.0 A, type RP.

Rated current: 16 A, breaking capacity: max. 2000 VA. Contact material: AgNi 0.15. Degree of protection: RT II.

Technical attributes (type, rated voltage, coil resistance (12 VDC, ±10 %; 24 VDC ±15 %), grid): 9-1393230-5, 24 VDC, 1100 ohm, 5.0 mm

Technical specifications
Connection PCB connection
Contact type 1 Form C (NO/NC)
Contact material AgNi 0.15
Switching Voltage (AC) 400 V
switching current 8 A
Coil voltage (DC) 24 V
Coil type monostable
Coil resistance 1.1 kΩ
Logistics
Country of origin US
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide
