9-1393243-7 | Schrack
Relay, 2 Form A (N/O), 12 V (DC), 360 Ω, 8 A, 400 V (AC), monostable, 9-1393243-7

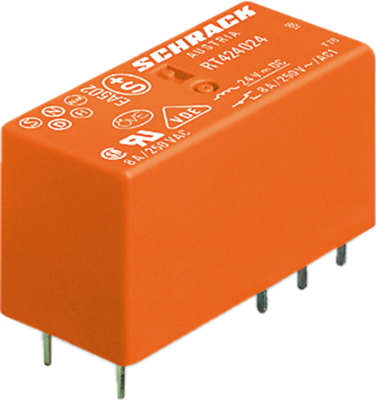

Power relay, type TE Connectivity/Schrack RT2.
For DC or AC voltage, automatic soldering-proof or wash-proof; Grid: 5.0 mm. Air gap/creepage distance: min. 10 mm between contacts and coil. Contact type: 2 CO or 2 NO (single contact). Contact material: AgNi 90/10 or AgSnO. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 8.0 A. Breaking capacity: max. 2000 VA. Dielectric strength coil/contact: 5000 VRMS. Pick-up/release time: max. 8.0/6.0 ms. Relay protection class RT II (automatic soldering-proof), RT III (wash-proof). Overvoltage category: III. Ambient temperatures: –40 to +85 °C (DC coil), –40 to +70 °C (AC coil). Certifications: VDE, UL, CSA etc.
Suitable for automatic soldering lines, 2 x NO contacts made of AgNi 90/10.
Technical attributes (type, rated coil voltage, coil resistance (±10 %, at AC coil ±15%), rated coil power): 9-1393243-7, 12 VDC, 360 ohm, 400 mW
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 2 Schließer | |
| Kontaktmaterial | AgNi 90/10 | |
| Rastermaß | 5 mm | |
| Schaltspannung (AC) | 400 V | |
| Schaltstrom | 8 A | |
| Spulenspannung (DC) | 12 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 360 Ω |
| Ursprungsland | MX |
| Zolltarifnummer | 85364900 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
