1393258-4 | Schrack
Safety relays, 2 Form C (NO/NC), 12 V (DC), 206 Ω, 8 A, 250 V (AC), 1393258-4
Unit Price (€ / pc.)
17.1122 € *
Available: 0 pcs.
Available in 5 Days: 4,050 pcs.
Leadtime: 21 Weeks **
Total Price:
17.11 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1122 €
10 pcs.
15.7437 €
50 pcs.
14.1610 €
100 pcs.
12.7449 €
*incl. VAT plus shipping costs
**Subject to prior sale

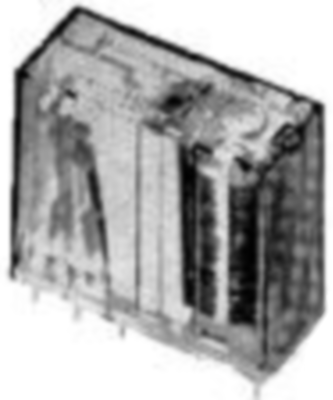

Power Relay, 1393258-4, Schrack
Power Relay Type: Force-Guided, Contact Limiting Breaking Current: 8 A, Coil Magnetic System: Monostable, DC, Coil Power Rating Class: 600 – 800 mW, Coil Power Rating DC: 699 mW, Coil Resistance: 206 Ω, Product Weight: 20 g, Contact Special Features: Single Button, Forcibly Guided, Contact Arrangement: 2 Form C (CO), Contact Current Class: 5 – 10 A, Contact Current Rating (Max): 6 A, Contact Material: AgNi, Relay Mounting Type: Printed Circuit Board, Product Height: 25.5 mm, Environmental Category of Protection: RTIII, Packaging Method: Box & Tube,Tube, Comment: Well suited for emergency shut-off, machine control, elevator and escalator control, light barrier control
Technical specifications
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | AgNi | |
| Schaltspannung (AC) | 250 V | |
| Schaltstrom | 8 A | |
| Spulenspannung (DC) | 12 V | |
| Spulenwiderstand | 206 Ω |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Diphenyl(2,4,6-trimethylbenzoyl)phosphinoxid |
