14575-169 | SCHROFF

Name: 19 inch desktop enclosure, 3 U/84 HP, (W x H x D) 471 x 147.1 x 451 mm, aluminum, gray, 14575-169
Brand: SCHROFF
SKU: 85H0391
Price: 207.93 EUR
Availability: OutOfStock

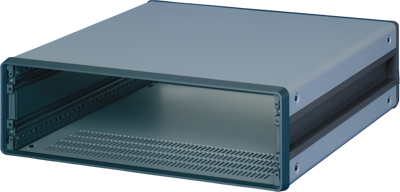

19 inch desktop enclosure, 3 U/84 HP, (W x H x D) 471 x 147.1 x 451 mm, aluminum, gray, 14575-169

Order No.: 85H0391

EAN: 4036088076381

MPN:

14575-169

Series: CompacPro

Image may differ

Key Specification:

Ausführung Tischgehäuse

Teilung 3 HE/84 TE

Breite 471 mm

Höhe 147.1 mm

Tiefe 451 mm

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

207.9287 € *

Available: 0 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

207.93 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Desktop enclosure, 14575-169, SCHROFF

Die-cast aluminum frame and profile side panels ensure high robustness. Side panel with integrated handle function. Ventilation slots in the base plate.

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Herstellerkatalog - DE Herstellerkatalog

Logistics

Ursprungsland	DE
Zolltarifnummer	76169990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
