Name: Subrack kit, unshielded, aluminum, (L x W x H) 355 x 482.6 x 132.55 mm, 3 U/84 HP, for EMC seal, 24563-134
Brand: SCHROFF
SKU: 85H3869
Price: 72.72 EUR
Availability: OutOfStock

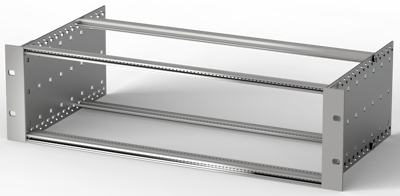

Subrack kit, unshielded, aluminum, (L x W x H) 355 x 482.6 x 132.55 mm, 3 U/84 HP, for EMC seal, 24563-134

Order No.: 85H3869

EAN: 4036088071386

MPN:

24563-134

Series: EuropacPro

Image may differ

Key Specification:

Ausführung ungeschirmt

Material Aluminium

Länge 355 mm

Show 7 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

72.7209 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

72.72 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Subrack kit, 24563-134, SCHROFF

Unshielded subrack for backplane mounting.
