24563-136 | SCHROFF

Name: Subrack kit, unshielded, aluminum, (L x W x H) 475 x 482.6 x 132.55 mm, 3 U/84 HP, for EMC seal, 24563-136
Brand: SCHROFF
SKU: 85H3871
Price: 78.24 EUR
Availability: InStock

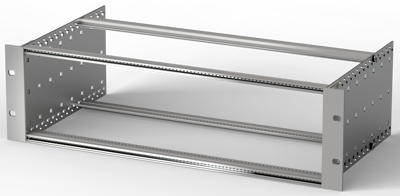

Subrack kit, unshielded, aluminum, (L x W x H) 475 x 482.6 x 132.55 mm, 3 U/84 HP, for EMC seal, 24563-136

Order No.: 85H3871

EAN: 4036088071409

MPN:

24563-136

Series: EuropacPro

Image may differ

Key Specification:

Ausführung ungeschirmt

Material Aluminium

Länge 475 mm

Show 7 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

78.2425 € *

Available: 2 pcs.

Leadtime: 2 Weeks **

Total Price:

78.24 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Subrack kit, 24563-136, SCHROFF

Unshielded subrack for backplane mounting.
