24563-970 | SCHROFF

Subrack kit, without front handle, rectangular, stainless steel, (D) 235 mm, 3 U/84 HP, natural, for circuit board, 24563-970

Order No.: 85H6804
EAN: 4036088230844
MPN:
24563-970
24563970

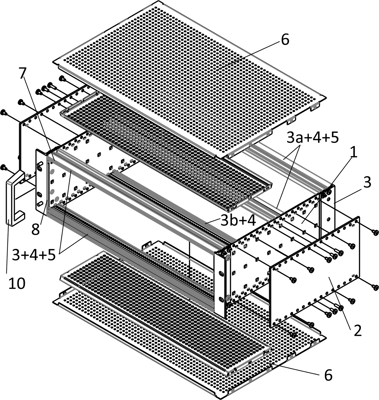

24563-970 SCHROFF Accessories for Enclosures Image 1

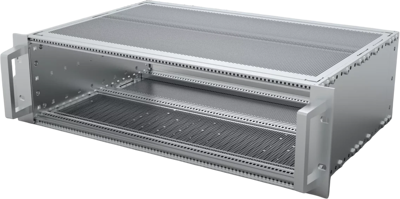

24563-970 SCHROFF Accessories for Enclosures Image 2

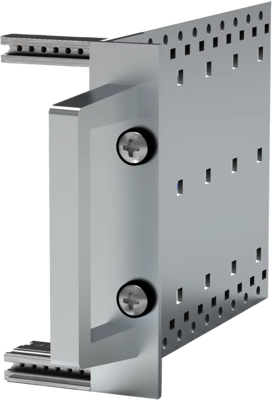

24563-970 SCHROFF Accessories for Enclosures Image 3
24563-970 SCHROFF Accessories for Enclosures Image 4
Image may differ
Unit Price (€ / pc.)
237.405 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
237.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
237.405 €

Subrack Kit for Backplane, 24563-970, SCHROFF

EMC Shielded subrack for backplane mounting, heavy version with tox welded side panels.

Features

  • Dual mesh top and bottom covers with EMC and airflow optimized perforation, fulfills the requirements of the fire safety standard EN 62368-1
  • Additional side panel covers for increased lateral RF shielding
  • Horizontal rails and side panels of type H (“Heavy”) for harsh environments

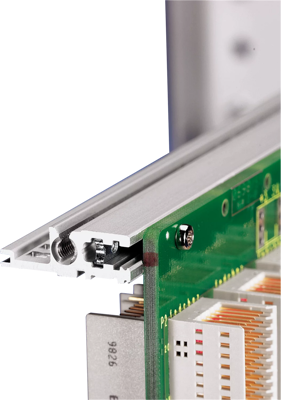

  • Rear horizontal rail for direct backplane mounting without insulation strip
  • Shock and vibration resistant up to 5 g, tested in accordance with EN 61373 class 1, category B
  • Installation load up to 15 kg
  • Compatible with textile and stainless-steel U-front panel gaskets
Technical specifications
Version ohne Frontgriff
Design rechteckig
Colour natur
Suitable for Leiterplatte
Material Edelstahl
Product type Baugruppenträgersatz
cutting pitch differential 3 HE/84 TE
Depth 235 mm
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
