24564-149 | SCHROFF

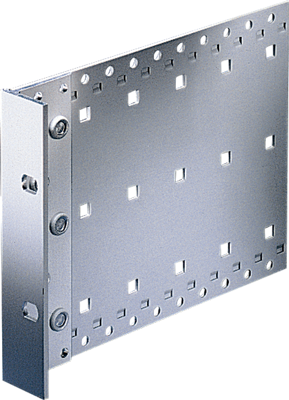

Name: Side panel, aluminum, (L x H) 295 mm x 132.55 mm, 3 U, 24564-149
Brand: SCHROFF
SKU: 85H3923
Price: 35.15 EUR
Availability: OutOfStock

Side panel, aluminum, (L x H) 295 mm x 132.55 mm, 3 U, 24564-149

Order No.: 85H3923

EAN: 4036088071928

MPN:

24564-149

Series: EuropacPro

Image may differ

Key Specification:

Material Aluminium

Länge 295 mm

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

35.1526 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

35.15 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Side panel, 24564-149, SCHROFF

Side panel, type H, with handle holes, tox welded to the 19" bracket for textile gasket.

Technical specifications

	Höhe	132.55 mm
	Länge	295 mm
	Material	Aluminium
	Produkt-Art	Seitenwand
	Teilung	3 HE

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	76169990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
