24564-445 | SCHROFF

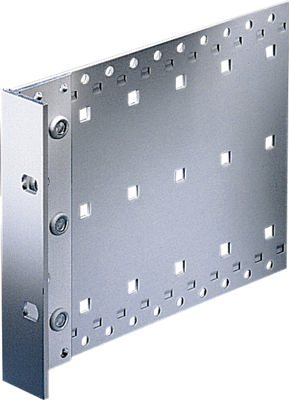

Name: Side panel, aluminum, (L x H) 175 mm x 265.9 mm, 6 U, 24564-445
Brand: SCHROFF
SKU: 85H3936
Price: 46.34 EUR
Availability: OutOfStock

Side panel, aluminum, (L x H) 175 mm x 265.9 mm, 6 U, 24564-445

Order No.: 85H3936

EAN: 4036088072055

MPN:

24564-445

Series: EuropacPro

Image may differ

Key Specification:

Material Aluminium

Länge 175 mm

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

46.3386 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

46.34 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Side panel, 24564-445, SCHROFF

Side panel, type H, with handle holes, tox welded to the 19" bracket for textile gasket.

Technical specifications

	Höhe	265.9 mm
	Länge	175 mm
	Material	Aluminium
	Produkt-Art	Seitenwand
	Teilung	6 HE

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	76169990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
