24564-451 | SCHROFF

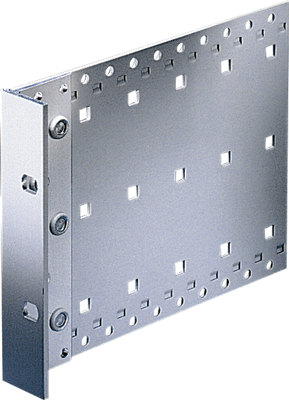

Name: Side panel, aluminum, (L x H) 355 mm x 265.9 mm, 6 U, 24564-451
Brand: SCHROFF
SKU: 85H3939
Price: 64.31 EUR
Availability: OutOfStock

Side panel, aluminum, (L x H) 355 mm x 265.9 mm, 6 U, 24564-451

Order No.: 85H3939

EAN: 4036088072086

MPN:

24564-451

Series: EuropacPro

Image may differ

Key Specification:

Material Aluminium

Länge 355 mm

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

64.3076 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

64.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Side panel, 24564-451, SCHROFF

Side panel, type H, with handle holes, tox welded to the 19" bracket for textile gasket.

Technical specifications

	Höhe	265.9 mm
	Länge	355 mm
	Material	Aluminium
	Produkt-Art	Seitenwand
	Teilung	6 HE

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	76169990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
