24567-125 | SCHROFF

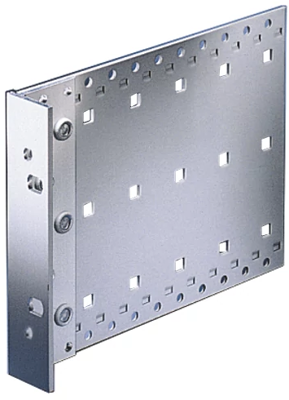

Name: Side panel, aluminum, (L x H) 175 mm x 132.55 mm, 3 U, 24567-125
Brand: SCHROFF
SKU: 85H3980
Price: 25.54 EUR
Availability: OutOfStock

Side panel, aluminum, (L x H) 175 mm x 132.55 mm, 3 U, 24567-125

Order No.: 85H3980

EAN: 4036088072475

MPN:

24567-125

Series: EuropacPro

Image may differ

Key Specification:

Material Aluminium

Länge 175 mm

Ordering Information:

Packung mit 2 Stück

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pck.)

25.5374 € *

Available: 0 pck.

Leadtime: On Request **

Total Price:

25.54 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Side panel, 24567-125, SCHROFF

Side panel, type H, with handle holes, tox welded with 19" angle for stainless steel gasket.

Technical specifications

	Höhe	132.55 mm
	Länge	175 mm
	Material	Aluminium
	Produkt-Art	Seitenwand
	Teilung	3 HE

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	76169990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
