EF300R5 | SCHROFF
Air Filtered Fan EF 300, 230 VAC
Order No.: 85H6761
EAN: 4036088218941
MPN:
EF300R5
Unit Price (€ / pc.)
120.7969 € *
Available: 0 pcs.
Leadtime: 1 Week **

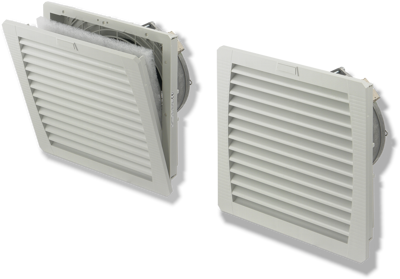

Filter fan air flow, EF300R5, SCHROFF
This vertical filter fan, EF, with a IP 54 protection degree, is easy to install thanks to its click-in feature. Unnecessary downtime is avoided, since water and dust are prevented from entering the enclosure through the filter, and the reliable fan motor will ensure constant ventilation.
Features
- The filter fan is reliable due to its high quality motor, as well as being easy to install
- The click-in feature reduces the customer's labour cost due to the ease of installation
- The filter fan should be installed together with at least one exhaust filter, EFA
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
Technical specifications
| Width | 252 mm | |
| Height | 252 mm | |
| Type of bearing | ball bearing | |
| Rated voltage | 230 V | |
| Sound pressure level | 42 db | |
| Degree of protection (IP) | IP54 | |
| Depth | 113 mm | |
| Volume flow | 223 m³/h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
