69001-801 | SCHROFF

Name: Connector Type B, EN 60603, DIN 41612, Male,64 Contacts, Solder Pins, 3 mm
Brand: SCHROFF
SKU: 85H6681
Price: 3.57 EUR
Availability: OutOfStock

Connector Type B, EN 60603, DIN 41612, Male,64 Contacts, Solder Pins, 3 mm

Order No.: 85H6681

EAN: 4036088067808

MPN:

69001-801

Image may differ

Key Specification:

Version Messerleiste

Contact type Stift

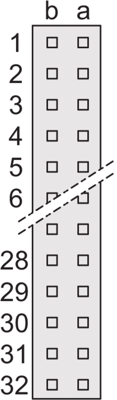

Pin number 64-polig

Grid 2.54 mm

Connection Lötstift

Show 39 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.5700 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Total Price:

35.70 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Male / Female DIN connector form B. Requirement class 2 as per EN 60603 (DIN 41642).

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 39 variations

*incl. VAT plus shipping costs
