ESD 498 / GE | SCHÜTZINGER

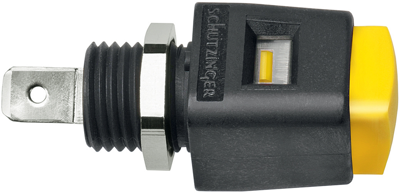

Quick pressure clamp, 12.5 mm, yellow, 30 VAC/60 VDC, 16 A, faston plug, nickel-plated, ESD 498 / GE
Order No.: 30F3553
EAN: 4099889681017
MPN:
ESD 498 / GE
99007962
Unit Price (€ / pc.)
6.4617 € *
Available: 4 pcs.
Leadtime: 1 Week **
Total Price:
6.46 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4617 €
20 pcs.
5.8786 €
60 pcs.
5.4383 €
100 pcs.
4.9980 €
500 pcs.
4.5577 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick release terminals with 6.3 x 0.8 mm tab terminals for front-panel mounting, type Schützinger ESD 498/.
For fast and safe contacting of stranded wire and solid wire without tools, vibration-proof through integrated gill plate, easy release; Installation: insulated, for metallic front panels (0.8 to 7.0 mm thickness). Rated voltage: 33 VAC/70 VDC. Rated current: 16 A. Contact resistance: max 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type ESD 498/GNGE with yellow housing and green pushbutton)): ESD 498/GE, yellow

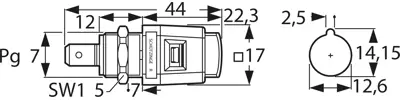

Technical specifications
| Connection | faston plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| diameter | 12.5 mm | |
| Installation diameter | 12.6 mm | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Length | 44 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
