ESD 498 / OR | SCHÜTZINGER

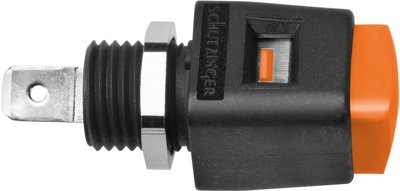

Quick pressure clamp, 12.5 mm, orange, 33 VAC/70 VDC, 16 A, faston plug, nickel-plated, ESD 498 / OR
Unit Price (€ / pc.)
6.4617 € *
Available: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
6.46 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4617 €
20 pcs.
5.8786 €
60 pcs.
5.4383 €
100 pcs.
4.9980 €
500 pcs.
4.5577 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick pressure clamp, ESD 498 / OR, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant thanks to inserted gill plate, easy to release. Fully insulated, for metal front panels (0.8 to 7.0 mm thick).

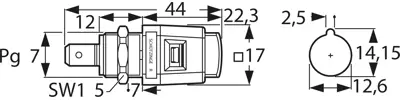

Technical specifications
| Anschluss | Flachstecker | |
| Bemessungsspannung | 33 VAC/70 VDC | |
| Bemessungsstrom | 16 A | |
| Durchmesser | 12.5 mm | |
| Einbaudurchmesser | 12.6 mm | |
| Farbe | orange | |
| Kontaktoberfläche | vernickelt | |
| Länge | 44 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
