ESD 6554 / RT | SCHÜTZINGER

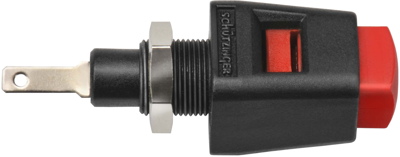

Quick pressure clamp, 12.5 mm, red, 30 VAC/60 VDC, 5 A, faston plug, nickel-plated, ESD 6554 / RT
Order No.: 30F3541
EAN: 4099889680911
MPN:
ESD 6554 / RT
99013100
Unit Price (€ / pc.)
4.6648 € *
Available: 16 pcs.
Leadtime: 1 Week **
Total Price:
4.66 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6648 €
20 pcs.
4.2364 €
60 pcs.
3.9151 €
100 pcs.
3.6057 €
500 pcs.
3.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick release terminals with 2.8 x 0.5 mm tab terminals for front-panel mounting, type Schützinger ESD 6554/.
For fast and safe contacting of stranded wires and solid wires without tools, vibration-proof through integrated gill plate, easy release; Installation: insulated, for metallic front panels (0.8 to 4.0 mm thickness). Rated voltage: 30 VAC/60 VDC. Rated current: 5.0 A. Contact resistance: max. 3.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to 90 °C.
Technical attributes (type, pushbutton color): ESD 6554/RT, red
Technical specifications
| Connection | faston plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 5 A | |
| diameter | 12.5 mm | |
| Installation diameter | 8.2 mm | |
| Colour | red | |
| contact surface | nickel-plated | |
| Length | 44 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
