ESD 798 / BR | SCHÜTZINGER

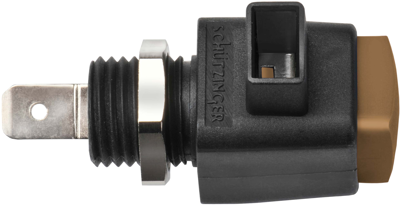

Quick pressure clamp, 12.5 mm, brown, 300 V, 16 A, faston plug, nickel-plated, ESD 798 / BR
Order No.: 36F157
EAN: 4099889681383
MPN:
ESD 798 / BR
99008592
Unit Price (€ / pc.)
7.4018 € *
Available: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
7.40 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4018 €
20 pcs.
6.8425 €
60 pcs.
6.2951 €
100 pcs.
5.9262 €
250 pcs.
5.5573 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety quick release terminals with 6.3 x 0.8 mm tab terminals for front-panel mounting, type Schützinger ESD 798/.
For fast and safe contacting of stranded wire and solid wire without tools, vibration-proof through integrated gill plate, easy release; Installation: insulated, for metallic front panels (0.8 to 7.0 mm thickness). Rated voltage: 300 V, CAT II. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts material: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type ESD 798/GNGE with yellow housing and green pushbutton)): ESD 798/BR, brown
Technical specifications
| Connection | faston plug | |
| Rated Voltage | 300 V | |
| Rated current | 16 A | |
| diameter | 12.5 mm | |
| Installation diameter | 12.6 mm | |
| Colour | brown | |
| contact surface | nickel-plated | |
| Length | 44 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
