ESD 798 / GNGE | SCHÜTZINGER
Quick pressure clamp, 12.5 mm, yellow/green, 300 V, 16 A, faston plug, nickel-plated, ESD 798 / GNGE
Unit Price (€ / pc.)
7.4018 € *
Available: 18 pcs.
Leadtime: 1 Week **
Total Price:
7.40 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4018 €
20 pcs.
6.8425 €
60 pcs.
6.2951 €
100 pcs.
5.9262 €
250 pcs.
5.5573 €
*incl. VAT plus shipping costs
**Subject to prior sale

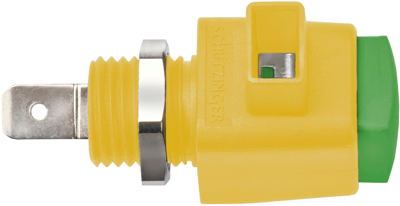

Quick pressure clamp, ESD 798 / GNGE, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of stranded wires and wires, without tools, vibration-resistant thanks to inserted gill plate, easy to release. Fully insulated, for metal front panels (0.8 to 7.0 mm thick), with yellow housing and green push button.
Technical specifications
| Anschluss | Flachstecker | |
| Bemessungsspannung | 300 V | |
| Bemessungsstrom | 16 A | |
| Durchmesser | 12.5 mm | |
| Einbaudurchmesser | 12.6 mm | |
| Farbe | gelb/grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 44 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
