POL 102 / GN | SCHÜTZINGER
Pole terminal, 4 mm, green, 1000 V, 100 A, M8 threaded bolt, nickel-plated, POL 102 / GN
Unit Price (€ / pc.)
25.7754 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.78 € *
Price list
Quantity
Price per unit*
10 pcs.
25.7754 €
50 pcs.
24.2522 €
100 pcs.
22.7409 €
*incl. VAT plus shipping costs
**Subject to prior sale

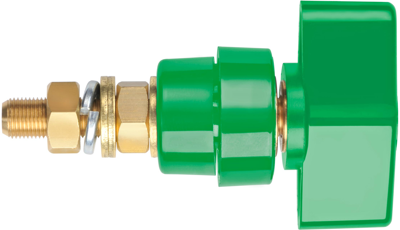

Pole terminal, POL 102 / GN, SCHÜTZINGER
For 4.0 mm plugs. With insulating rings and captive toggle; Rated voltage: 1000 V. Rated current: 100 A. Contact resistance: max. 0.4 mohm. Operating temperatures: -25 to +115 °C.
Type: POL 102, green.

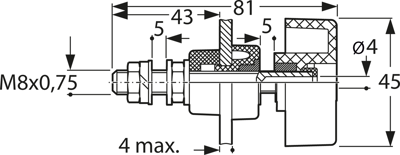

Technical specifications
| Anschluss | M8 Gewindebolzen | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 100 A | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 45 mm | |
| Farbe | grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 81 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
