POL 102 / GNGE | SCHÜTZINGER

Pole terminal, 4 mm, yellow/green, 1000 V, 100 A, M8 threaded bolt, nickel-plated, POL 102 / GNGE

Order No.: 25F675
EAN: 4099889680898
MPN:
POL 102 / GNGE
99003997
SCHÜTZINGER

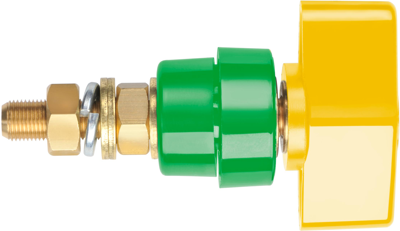

POL 102 / GNGE SCHÜTZINGER Binding Posts Image 1
POL 102 / GNGE SCHÜTZINGER Binding Posts Image 2
Image may differ
Unit Price (€ / pc.)
25.7754 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
25.78 € *
Price list
Quantity
Price per unit*
10 pcs.
25.7754 €
50 pcs.
24.2522 €
100 pcs.
22.7409 €
*incl. VAT plus shipping costs
**Subject to prior sale

Binding post, 4.0 mm, type Schützinger POL 102.

For 4.0 mm plugs. With insulating rings and captive toggle; Rated voltage: 1000 V. Rated current: 100 A. Contact resistance: max. 0.4 mohm. Operating temperatures: –25 to +115 °C.

Type: POL 102, green/yellow

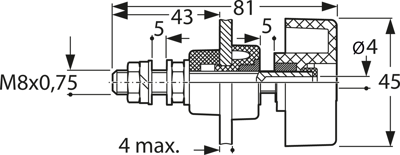

Technical specifications
Connection M8 threaded bolt
Rated Voltage 1000 V
Rated current 100 A
diameter 4 mm
Installation diameter 45 mm
Colour yellow/green
contact surface nickel-plated
Length 81 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
