POL 102 / RT | SCHÜTZINGER
Pole terminal, 4 mm, red, 1000 V, 100 A, M8 threaded bolt, nickel-plated, POL 102 / RT
Order No.: 25F671
EAN: 4099889680850
MPN:
POL 102 / RT
99003998
Unit Price (€ / pc.)
28.0483 € *
Available: 8 pcs.
Leadtime: 1 Week **
Total Price:
28.05 € *
Price list
Quantity
Price per unit*
1 pcs.
28.0483 €
5 pcs.
27.2867 €
10 pcs.
25.7754 €
50 pcs.
24.2522 €
100 pcs.
22.7409 €
*incl. VAT plus shipping costs
**Subject to prior sale

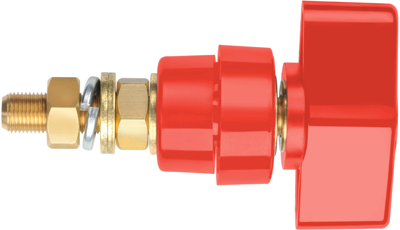

Binding post, 4.0 mm, type Schützinger POL 102.
For 4.0 mm plugs. With insulating rings and captive toggle; Rated voltage: 1000 V. Rated current: 100 A. Contact resistance: max. 0.4 mohm. Operating temperatures: –25 to +115 °C.
Type: POL 102, red

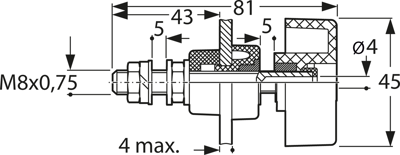

Technical specifications
| Connection | M8 threaded bolt | |
| Rated Voltage | 1000 V | |
| Rated current | 100 A | |
| diameter | 4 mm | |
| Installation diameter | 45 mm | |
| Colour | red | |
| contact surface | nickel-plated | |
| Length | 81 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
