POL 6718 NI / RT | SCHÜTZINGER
Pole terminal, 4 mm, red, 33 VAC/70 VDC, 36 A, solder connection/cable lug, nickel-plated, POL 6718 NI / RT
Unit Price (€ / pc.)
6.6997 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
6.70 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6997 €
10 pcs.
6.3308 €
50 pcs.
5.9619 €
100 pcs.
5.5930 €
250 pcs.
5.2122 €
*incl. VAT plus shipping costs
**Subject to prior sale

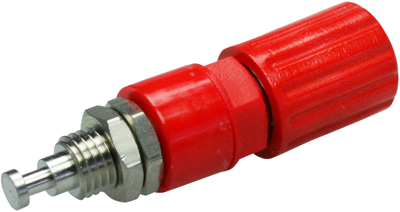

Pole terminal, POL 6718 NI / RT, SCHÜTZINGER
For 4.0 mm plugs, solder terminals, radial cable quick-connect (2.0 mm), insulating rings, captive head; Rated voltage: 33 VAC/70 VDC. Rated current: 36 A. Contact resistance: max. 20 mohm. Contact material: nickel-plated brass. Insulating parts: POM. Operating temperatures: -20 to +80 °C.
Type: POL 6718, red.

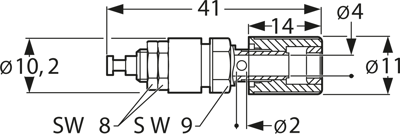

Technical specifications
| Anschluss | Lötanschluss/Kabelschuh | |
| Bemessungsspannung | 33 VAC/70 VDC | |
| Bemessungsstrom | 36 A | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 11 mm | |
| Farbe | rot | |
| Kontaktoberfläche | vernickelt | |
| Länge | 41 mm |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
