POL 6718 NI / SW | SCHÜTZINGER
Pole terminal, 4 mm, black, 33 VAC/70 VDC, 36 A, solder connection/cable lug, nickel-plated, POL 6718 NI / SW
Order No.: 25F591
EAN: 4099889680584
MPN:
POL 6718 NI / SW
99013319
Unit Price (€ / pc.)
6.6997 € *
Available: 22 pcs.
Leadtime: 2 Weeks **
Total Price:
6.70 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6997 €
10 pcs.
6.3308 €
50 pcs.
5.9619 €
100 pcs.
5.5930 €
250 pcs.
5.2122 €
*incl. VAT plus shipping costs
**Subject to prior sale

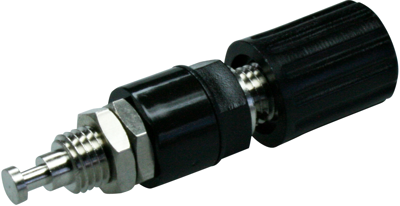

Binding post, 4.0 mm, type Schützinger POL 6718.
For 4.0 mm plugs, solder terminals, radial cable quick-connect (2.0 mm), insulating rings, captive head; Rated voltage: 33 VAC/70 VDC. Rated current: 36 A. Contact resistance: max. 20 mohm. Contact material: nickel-plated brass. Insulating parts: POM. Operating temperatures: –20 to +80 °C.
Type: POL 6718, binding post, black

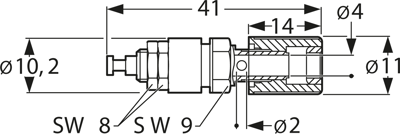

Technical specifications
| Connection | solder connection/cable lug | |
| Rated Voltage | 33 VAC/70 VDC | |
| Rated current | 36 A | |
| diameter | 4 mm | |
| Installation diameter | 11 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 41 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
