SDK 502 / GNGE | SCHÜTZINGER
Quick pressure clamp, 4 mm, yellow/green, 30 VAC/60 VDC, 16 A, 4 mm plug, nickel-plated, SDK 502 / GNGE
Unit Price (€ / pc.)
6.9734 € *
Available: 9 pcs.
Leadtime: 1 Week **
Total Price:
6.97 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9734 €
10 pcs.
6.4498 €
50 pcs.
5.9262 €
100 pcs.
5.5811 €
250 pcs.
5.2360 €
*incl. VAT plus shipping costs
**Subject to prior sale

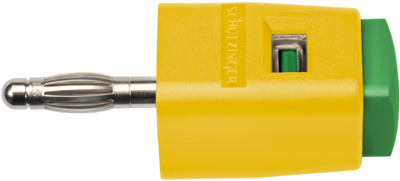

Quick pressure clamp, SDK 502 / GNGE, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant thanks to inserted gill plate, easy to release. With yellow housing and green push button.

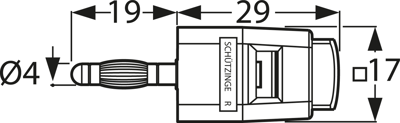

Technical specifications
| Anschluss | 4 mm Stecker | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 16 A | |
| Durchmesser | 4 mm | |
| Farbe | gelb/grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 48 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
