SDK 502 / WS | SCHÜTZINGER
Quick pressure clamp, 4 mm, white, 30 VAC/60 VDC, 16 A, 4 mm plug, nickel-plated, SDK 502 / WS
Order No.: 36F189
EAN: 4099889681734
MPN:
SDK 502 / WS
99004168
Unit Price (€ / pc.)
6.9734 € *
Available: 9 pcs.
Leadtime: 1 Week **
Total Price:
6.97 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9734 €
10 pcs.
6.4498 €
50 pcs.
5.9262 €
100 pcs.
5.5811 €
250 pcs.
5.2360 €
*incl. VAT plus shipping costs
**Subject to prior sale

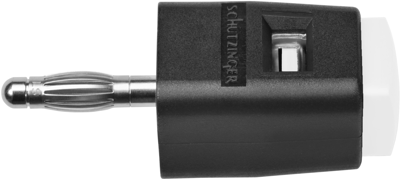

Quick release terminals with 4.0 mm plug pin, type Schützinger SDK 502/.
For fast and safe contacting of stranded wire and solid wire without tools, vibration-proof through integrated gill plate, easy release; Connection: plug-in. Rated voltage: 33 VAC/70 VDC. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 502/GNGE with yellow housing and green pushbutton)): SDK 502/WS, white

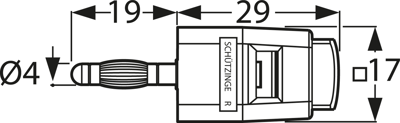

Technical specifications
| Connection | 4 mm plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| diameter | 4 mm | |
| Colour | white | |
| contact surface | nickel-plated | |
| Length | 48 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
