SDK 503 / GE | SCHÜTZINGER

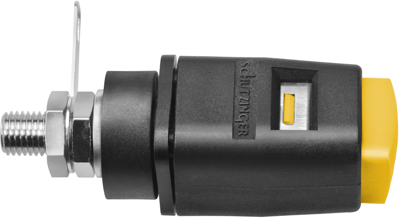

Quick pressure clamp, yellow, 30 VAC/60 VDC, 16 A, solder connection/cable lug, nickel-plated, SDK 503 / GE
Order No.: 30F3573
EAN: 4099889681215
MPN:
SDK 503 / GE
99004173
Unit Price (€ / pc.)
7.5803 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
7.58 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5803 €
10 pcs.
7.2471 €
50 pcs.
6.9020 €
100 pcs.
6.6402 €
500 pcs.
6.3070 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick release terminals with solder terminals for front-panel mounting, type Schützinger SDK 503/.
For fast and safe contacting of stranded wire and solid wire without tools, vibration-proof through integrated gill plate, easy release; Installation: insulated, for metallic front panels (0.8 to 5.0 mm thickness). Connection: solder lug or cable lug. Rated voltage: 33 VAC/70 VDC. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 503/GNGE with yellow housing and green pushbutton)): SDK 503/GE, yellow
Technical specifications
| Connection | solder connection/cable lug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |

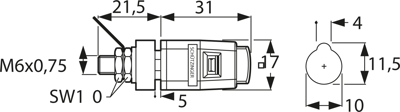

| Installation diameter | 10 mm | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Length | 52.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
