SDK 504 / GE | SCHÜTZINGER
Quick pressure clamp, yellow, 30 VAC/60 VDC, 16 A, solder connection/cable lug, nickel-plated, SDK 504 / GE
Order No.: 30F3563
EAN: 4099889681116
MPN:
SDK 504 / GE
99004187
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.6168 €
50 pcs.
5.2479 €
100 pcs.
4.9504 €
500 pcs.
4.7481 €
*incl. VAT plus shipping costs
**Subject to prior sale

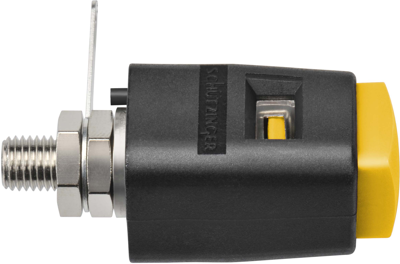

Quick release terminals with solder terminals for front-panel mounting, type Schützinger SDK 504/.
For fast and safe contacting of stranded wire and solid wire without tools, vibration-proof through integrated gill plate, easy release; Installation: non-insulated, for non-metallic front panels (0.8 to 5.0 mm thickness). Connection: solder lug or cable lug. Rated voltage: 33 VAC/70 VDC. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 503/GNGE with yellow housing and green pushbutton)): SDK 504/GE, yellow

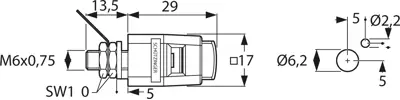

Technical specifications
| Connection | solder connection/cable lug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Installation diameter | 6.2 mm | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Length | 42.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
