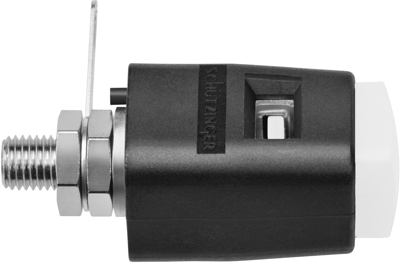

SDK 504 / WS | SCHÜTZINGER
Quick pressure clamp, white, 30 VAC/60 VDC, 16 A, solder connection/cable lug, nickel-plated, SDK 504 / WS
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.6168 €
50 pcs.
5.2479 €
100 pcs.
4.9504 €
500 pcs.
4.7481 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick release terminals with solder terminals for front-panel mounting, type Schützinger SDK 504/.
For fast and safe contacting of stranded wire and solid wire without tools, vibration-proof through integrated gill plate, easy release; Installation: non-insulated, for non-metallic front panels (0.8 to 5.0 mm thickness). Connection: solder lug or cable lug. Rated voltage: 33 VAC/70 VDC. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 503/GNGE with yellow housing and green pushbutton)): SDK 504/WS, white
Technical specifications
| Anschluss | Lötanschluss/Kabelschuh | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 16 A | |
| Einbaudurchmesser | 6.2 mm | |
| Farbe | weiß | |
| Kontaktoberfläche | vernickelt | |
| Länge | 42.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
