SDK 5230 / BL | SCHÜTZINGER

Quick pressure clamp, blue, 300 V, 16 A, solder connection/cable lug, nickel-plated, SDK 5230 / BL

Order No.: 36F192
EAN: 4099889681833
MPN:
SDK 5230 / BL
99011852
SCHÜTZINGER

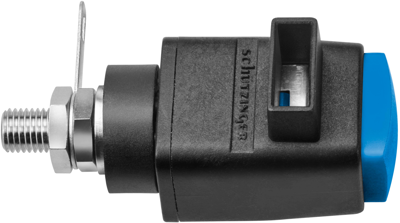

SDK 5230 / BL SCHÜTZINGER Binding Posts Image 1

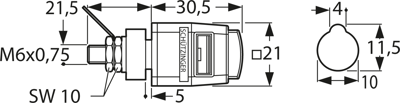

SDK 5230 / BL SCHÜTZINGER Binding Posts Image 2
Image may differ
Unit Price (€ / pc.)
10.1269 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.13 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1269 €
10 pcs.
9.5438 €
50 pcs.
8.9607 €
100 pcs.
8.3895 €
250 pcs.
7.8064 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety quick release terminals, solder connection for front-panel mounting, type Schützinger SDK 5230/.

For fast and safe wiring of stranded wires and solid wires without tools, vibration-proof through integrated gill plate, easy release; Installation: insulated, for metallic front panels (0.8 to 5.0 mm thickness). Connection: solder lug or cable lug. Rated voltage: 300 V, CAT II. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.


Technical attributes (type, pushbutton color): SDK 5230/BL, blue

Technical specifications
Connection solder connection/cable lug
Rated Voltage 300 V
Rated current 16 A
Installation diameter 10 mm
Colour blue
contact surface nickel-plated
Length 52 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
