SDK 799 / BL | SCHÜTZINGER
Quick pressure clamp, 4 mm, blue, 300 V, 16 A, 4 mm plug, nickel-plated, SDK 799 / BL
Order No.: 36F1910
EAN: 4099889681789
MPN:
SDK 799 / BL
99004199
Unit Price (€ / pc.)
10.6267 € *
Available: 19 pcs.
Leadtime: 1 Week **
Total Price:
10.63 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6267 €
10 pcs.
10.0317 €
50 pcs.
9.4486 €
100 pcs.
8.8536 €
250 pcs.
8.2586 €
*incl. VAT plus shipping costs
**Subject to prior sale

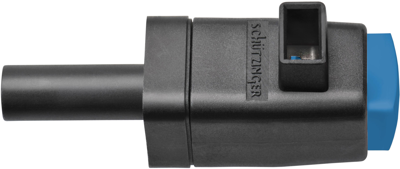

Safety quick release terminals with 4.0 mm safety plug pin, type Schützinger SDK 799/.
For fast and safe contacting of stranded wires and solid wires without tools, vibration-proof through integrated gill plate, easy release; Connection: plug-in. Rated voltage: 300 V, CAT II. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 799/GNGE with yellow housing and green pushbutton)): SDK 799/BL, blue
Technical specifications
| Connection | 4 mm plug | |
| Rated Voltage | 300 V | |
| Rated current | 16 A | |
| diameter | 4 mm | |
| Colour | blue | |
| contact surface | nickel-plated | |

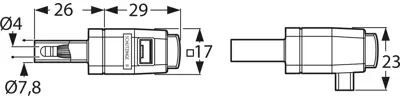

| Length | 55 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
