SDK 800 / SW | SCHÜTZINGER

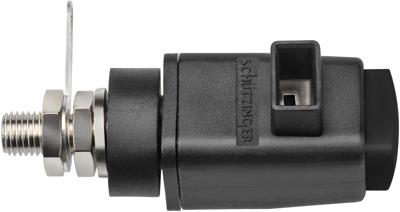

Quick pressure clamp, black, 300 V, 16 A, solder connection/cable lug, nickel-plated, SDK 800 / SW
Order No.: 36F160
EAN: 4099889681413
MPN:
SDK 800 / SW
99004223
Unit Price (€ / pc.)
8.6156 € *
Available: 7 pcs.
Leadtime: 1 Week **
Total Price:
8.62 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6156 €
10 pcs.
8.1634 €
50 pcs.
7.7112 €
100 pcs.
7.2590 €
250 pcs.
6.8068 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety quick release terminals, solder connection for front-panel mounting, type Schützinger SDK 800/.
For fast and safe contacting of stranded wires and solid wires without tools, vibration-proof through integrated gill plate, easy release; Installation: insulated, for metallic front panels (0.8 to 5.0 mm thickness). Connection: solder lug or cable lug. Rated voltage: 300 V, CAT II. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 800GNGE with yellow housing and green pushbutton)): SDK 800/SW, black
Technical specifications
| Connection | solder connection/cable lug | |
| Rated Voltage | 300 V | |
| Rated current | 16 A | |
| Installation diameter | 10 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 52.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
