SDK 801 / WS | SCHÜTZINGER

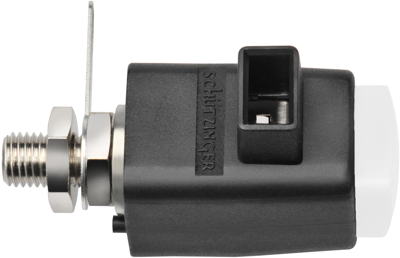

Quick pressure clamp, white, 300 V, 16 A, solder connection/cable lug, nickel-plated, SDK 801 / WS
Order No.: 36F179
EAN: 4099889681628
MPN:
SDK 801 / WS
99008972
Unit Price (€ / pc.)
7.5208 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.52 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5208 €
10 pcs.
7.0805 €
50 pcs.
6.6402 €
100 pcs.
6.1999 €
250 pcs.
5.7596 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety quick release terminals, solder connection for front-panel mounting, type Schützinger SDK 801/.
For fast and safe connection of stranded wires and solid wires without tools, vibration-proof through integrated gill plate, easy release; Installation: non-insulated, for non-metallic front panels (0.8 to 5.0 mm thickness). Connection: solder lug or cable lug. Rated voltage: 300 V, CAT II. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulated parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 801/GNGE with yellow housing and green pushbutton)): SDK 801/WS, white
Technical specifications
| Connection | solder connection/cable lug | |
| Rated Voltage | 300 V | |
| Rated current | 16 A | |
| Installation diameter | 6.2 mm | |
| Colour | white | |
| contact surface | nickel-plated | |
| Length | 42.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
